Techno Print specializes in the design and production of custom hot stamping, heat transfer and screen-printing decorating machines. We have a broad range of performance oriented hot stamping machines, which are considered for their premium performance and efficiency.

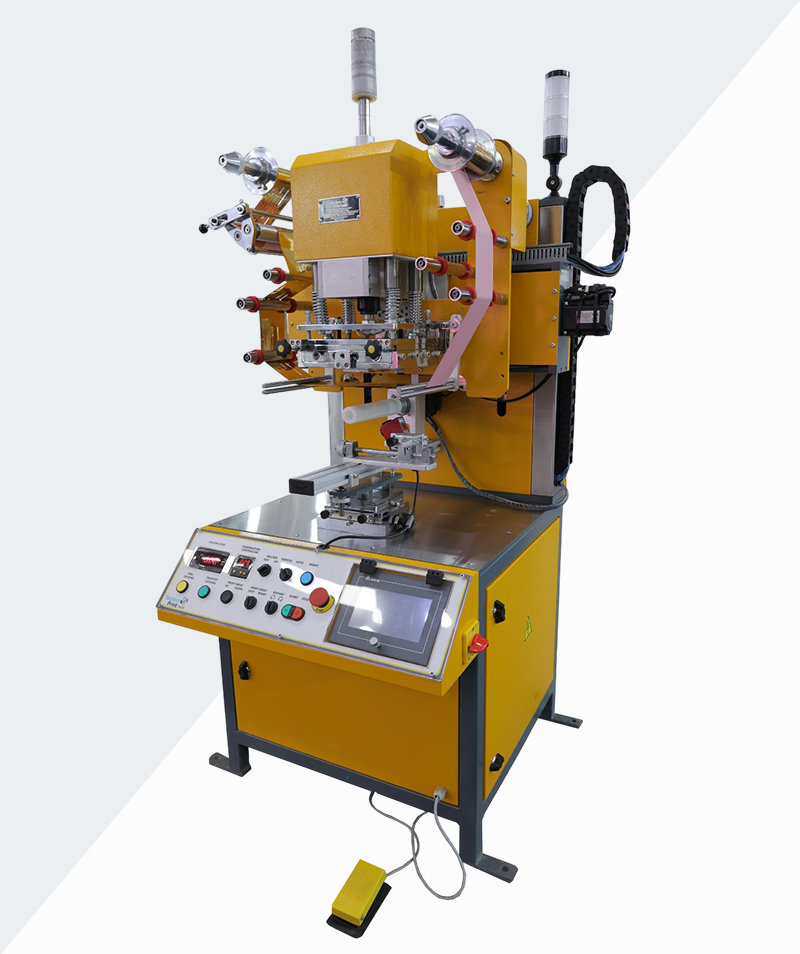

The machine model HSK400S is an easy-going machine for hot foil stamping and are known in the industry as “The most reliable stamping machines ever made”. Brilliantly simple, easy to operate and versatile. This is the machine you will be proud to bring to your shop floor.
This Model uses a heated Plate to apply decorative foil to a flat or slightly contoured surfaces. This machine had wide acceptance in the cosmetic and pharmaceutical decoration printing industries.
This machine is a single mandrel machine and works up to 16 parts per minute*. Being a single mandrel machine, the set-up time is very less and tooling cost is minimized with an enhanced production rate.
A wide range of part sizes can be accommodated and the starting position of the product can be set precisely as desired.
| SR.No. | Parameters | Units | HSK400S |
|---|---|---|---|
| 1 | Power Consumption | KW | 3 |
| 2 | Stamping Temp (Range) | ⁰C | 30 - 350 |
| 3 | Printing Pressure | Kgf | 200 |
| 4 | Printing Dimension (Round) | mm | 150"Ø x 360"H |
| 5 | Printing Output** | pcs/Hr | 1200 |
| 6 | Power Requirement | 230V; 1Ø; 50Hz | |
| 7 | Machine Dimension (L x B x H) | inch | 50 x 40 x 62 |
| 8 | Package Dimension (L x B x H) | inch | 54 x 44 x 70 |
| 9 | Net Weight | Kg | 450 |
| 10 | Gross Weight | Kg | 550 |
**Actual output depends on the product dimensions and capacity.
Servo-Driven “Perfect-Pixel” Accuracy which eliminates conventional Rack & Pinion System through Electronic-Camming technology for sharp, crisp, and aligned artwork every single time.
This machine is Dual Axis Motion Controlled Machine with CNC Auto-Registration Technology for Critical & Precise Positioning based Hot Stamping Job.
State-of-the-Art Technology for product orientation and Hot Stamping Process, Capable of printing products without mechanical lock or notch on the product.
Servo Motor Driven for Precise Printing Speed Control.
Precise foil advance system which can be adjusted to enable the operator to locate the foil at the correct position - Accurate, repeatable for minimal foil waste.
For precise temperature control the machine is equipped with PID temperature controller.
Operator-friendly graphical display for rapid parameter adjustment
Front panel speedy control to set ideal head travel speeds, stamping pressure, and foil stripping condition.
Convenient and Easy Stroke Length adjustments & Product Changeover for Rapid Setup.
Universal Fixture Mounting with X-Y & A Axis Micro Adjustment.
Universal Screen Mounting with X & Y Micro Adjustment.
The vertical movement of the stamping head is guided by precision ground guide rods and linear bearings for accurate positioning throughout the head stroke.
The to and fro movement of the carriage housing of the stamping head is guided in hardened & precision ground linear guides and linear bearings.
Optimum Performance and Transfer Quality from job to job.
Overall power consumption is up to 40% less, related to conventional machines.
All machined components are coated for long-term protection.
All major Electronic Control System components are from reputed manufacturers like Omron, Selec, Schneider Electric, Siemens, etc.
All major Pneumatic System components are from reputed manufacturers like Festo, Janatics, etc.
